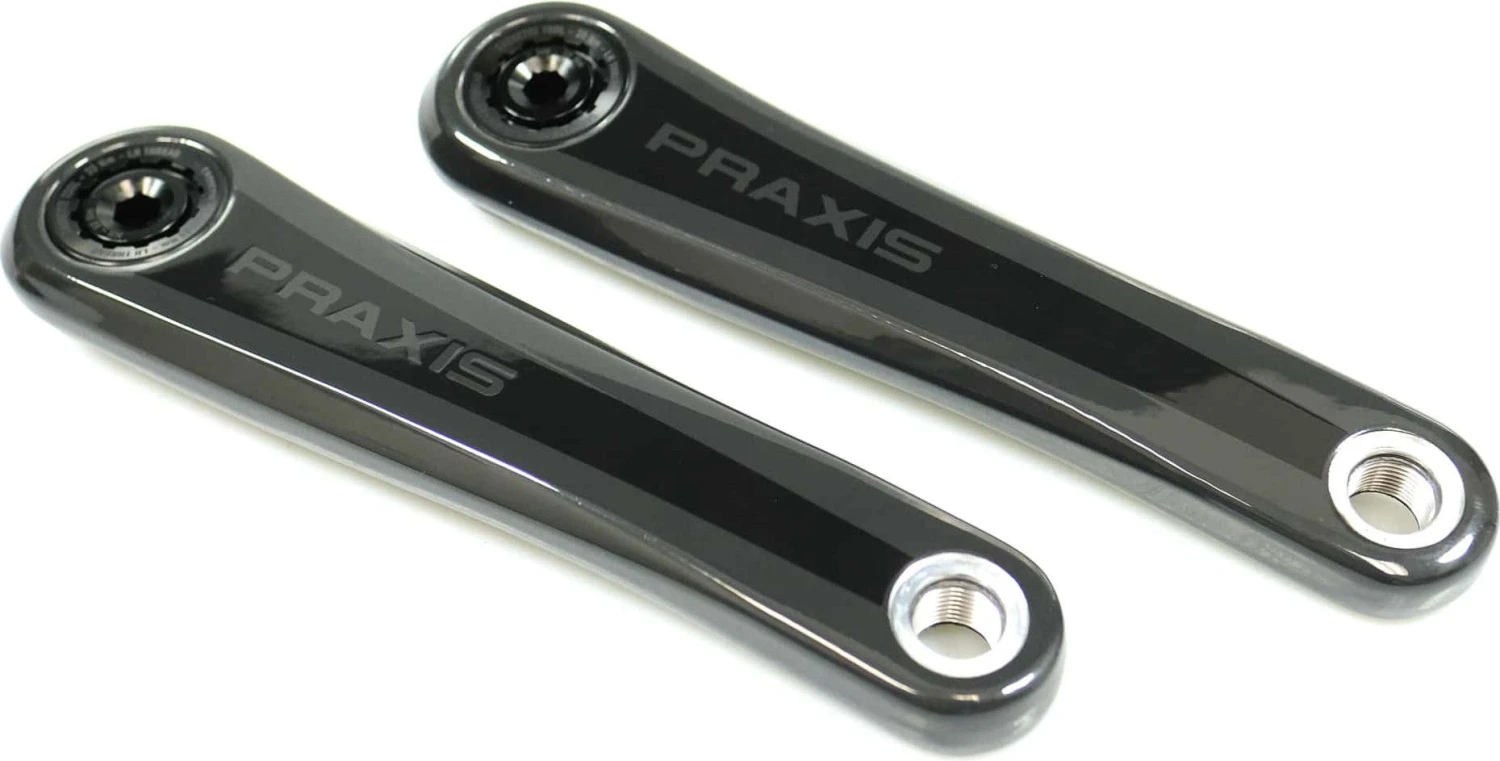

Praxis Carbon M30 ECranks Road Crank Arms For Specialized Creo SL

Well things developed fast! The Praxis eCrank arm sets are for new Specialized SL 1.1 motor with the Praxis M30 Spindle/Spline. The Road version is for Specialized “Creo SL” family of eBikes.

Features:

• Carbon Fiber arms.
• For Specialized eBikes with “SL 1.1” motor using Praxis M30 spindle/spline.
• Road Version for Specialized Creo SL family of bikes.
• M30 Alloy main crank bolt with self-extractor.
• 8 mm Allen for Install/Removal.
• 50 Nm torque.
• Weight: 340 g (Road 172.5 mm).

Compatibility:

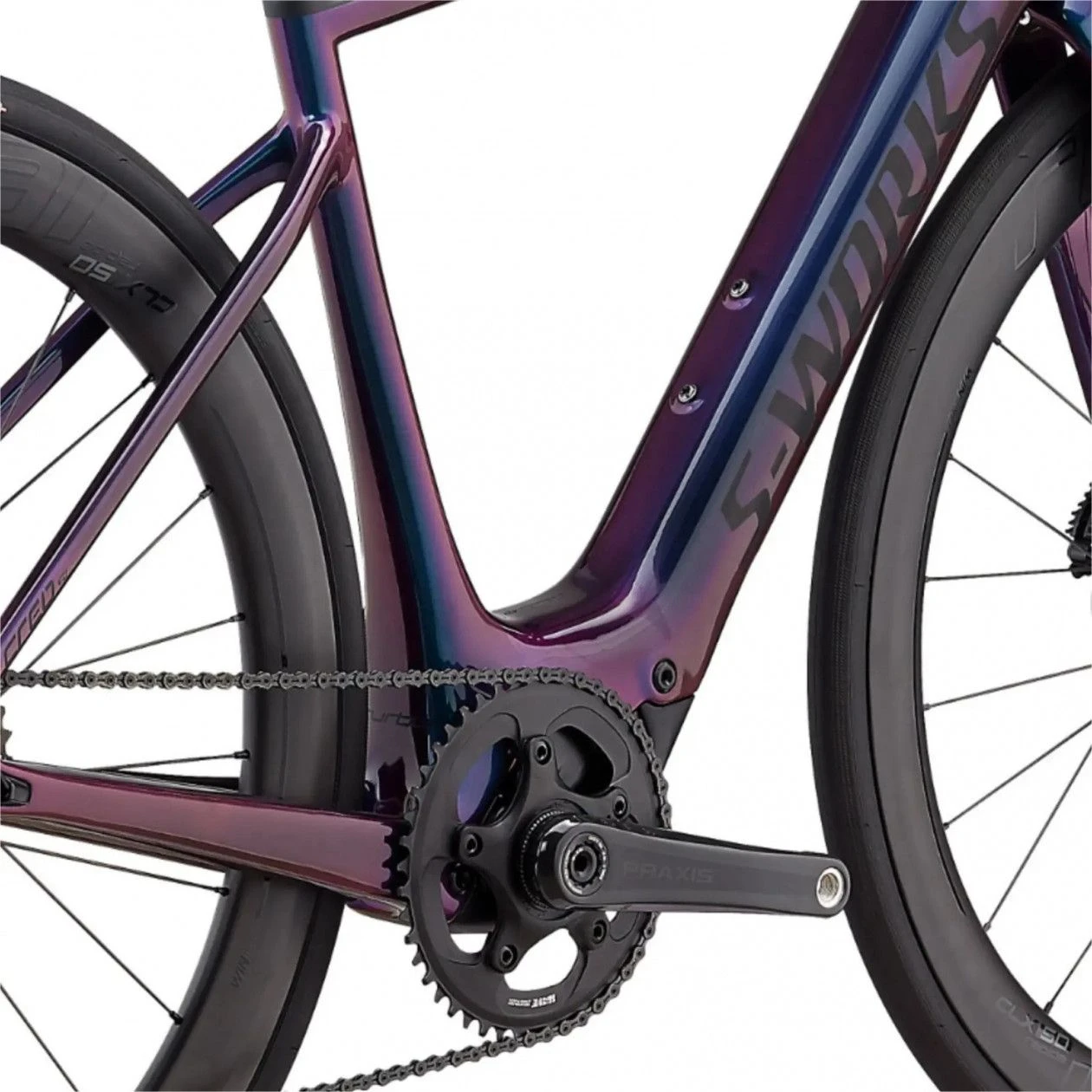

• Motor: Check your Specialized motor spindle type. These carbon eCranks are made for Specialized eBikes with “SL1.1” motors with M30 spindle interface. (See spindle picture above).
• Main bolt: The “M30/SL” eCranks with M30 spline use Praxis’ M30 alloy Main bolt/Self extractor.
• Qfactor: All eBike motors have different width spindles and this directly affects the Qfactor when the crank is installed. Q = 182 mm (when installed on Creo SL family of bikes).

References:

• EC-M30RD-165C: Road 165 mm M30/SL.
• EC-M30RD-170C: Road 170 mm M30/SL.
• EC-M30RD-1725C: Road 172.5 mm M30/SL.
• EC-M30RD-175C: Road 175 mm M30/SL.
