LOOK 2018 KEO 2 MAX Pedals Black

Optimized Contact Surface

The pedal’s surface area has substantial symbolic importance. It is part of the brand’s identity and acts as an indeliblesignature on the product.

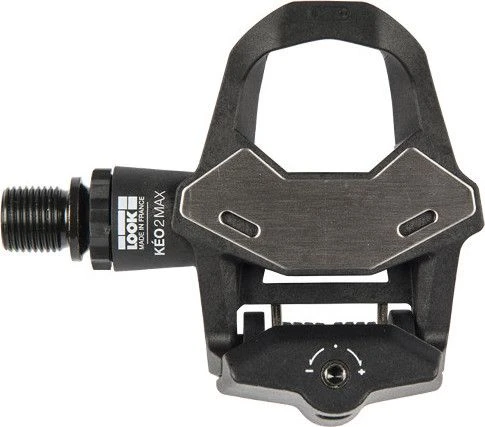

The contact surface of the new KEO 2 MAX preserves the strong lines on which its history was built. Its width has been increased to 60 mm to provide a larger platform and improved foot stability during pedaling. This creates a feeling of unrivaled comfort not found in any other pedal.We also sought to optimize power transfer thanks to its new 500 mm² of usable surface (+25% increase). The shape of the stainless-steel plate has been revised to match that of the cleat and to keep, regardless of the position of your foot (depending upon the angular float you use), the same amount of contact for consistent performance.
Increasing the pedal’s usable contact surface, without any additional weight gain, improves the Power to Weight ratio, making the product even better and allowing you to perform at your best.

Improved Spindle Profile

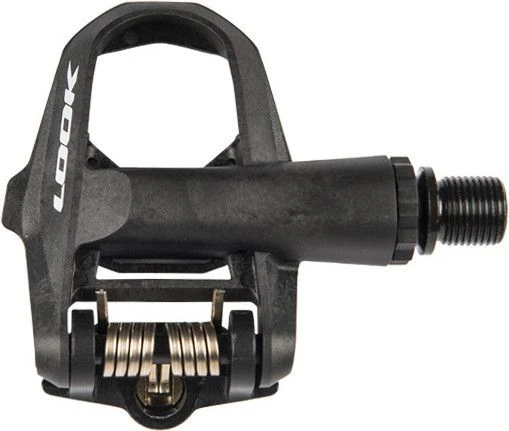

The spindle profile of the new KEO 2 MAX has also been optimized. Built around an oversized «Chromoly Plus» steel axle, it is composed of an axle with an inner ball bearing and a needle roller bearing, located under the contact surface, to handle the load and distribute it optimally.
A new component has been added between these two bearings. A serrated washer, previously used to hold the needle roller bearing in place, has been replaced with a conical spacer. This technical solution reduces friction, increases fluidity, and by consequence, decreases the geometrical tolerances of the pedal body and play.

Features:

• Usage: Recreational to Competition
• Body: Composite
• Axle: Chromoly+
• Pedal Stack Height + cleats: 17.3mm
• Contact Surface Area: 500mm²
• Float: 8 or 12 adjustable spring
• Cleats: Keo Grip Cleats
• Pedal weight: 130gr (328gr per pair with cleats and screws)
• Accessories: A pair of grey Kéo Grip cleats + screws
• Guaranty: 2 years
