Bombtrack Hook Gravel Bike Shimano GRX 10S 700 Mm Metallic Blue

Bombtrack Hook Gravel Bike Shimano GRX 10S 700 Mm Metallic Blue - Image 2

Bombtrack Hook Gravel Bike Shimano GRX 10S 700 Mm Metallic Blue - Image 3

Bombtrack Hook Gravel Bike Shimano GRX 10S 700 Mm Metallic Blue - Image 4

Bombtrack Hook Gravel Bike Shimano GRX 10S 700 Mm Metallic Blue - Image 5

Bombtrack Hook Gravel Bike Shimano GRX 10S 700 Mm Metallic Blue - Image 6

Bombtrack Hook Gravel Bike Shimano GRX 10S 700 Mm Metallic Blue - Image 7

Bombtrack Hook Gravel Bike Shimano GRX 10S 700 Mm Metallic Blue - Image 8

Bombtrack Hook Gravel Bike Shimano GRX 10S 700 Mm Metallic Blue

Original price was: $346.00.Current price is: $99.99.

SKU: YWXSD 1837552 Categories: Cyclocross & Gravel, Road Bikes, Road Bikes, Frames & Forks Tag: Bombtrack

Free Shipping, No Compromise on Quality
Shop with Ease
Multiple payment methods, safe and reliable
Guaranteed High Quality

Buying guide

Note : Please note that specifications are subject to change without notice, based on component availability and other factors.

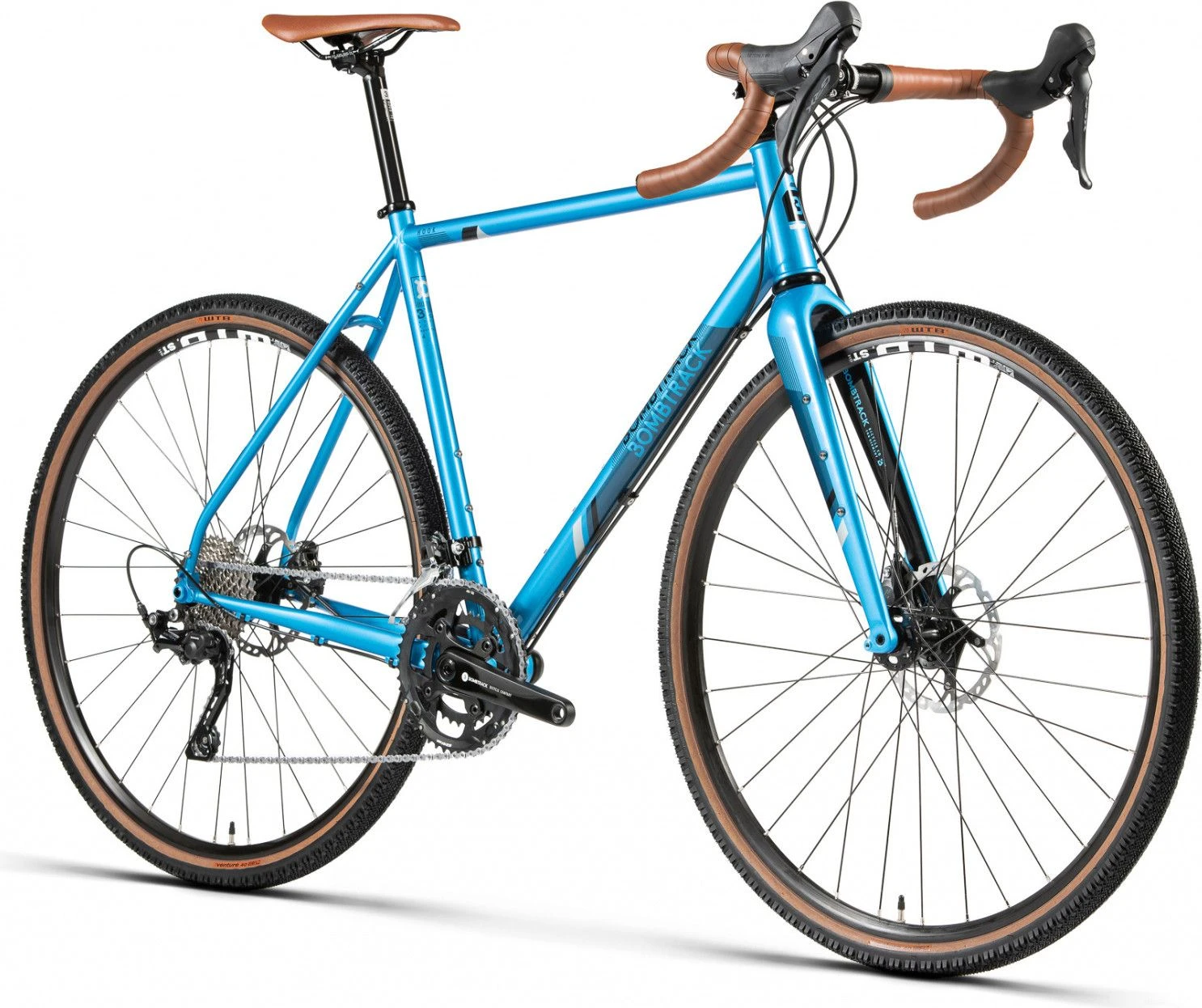

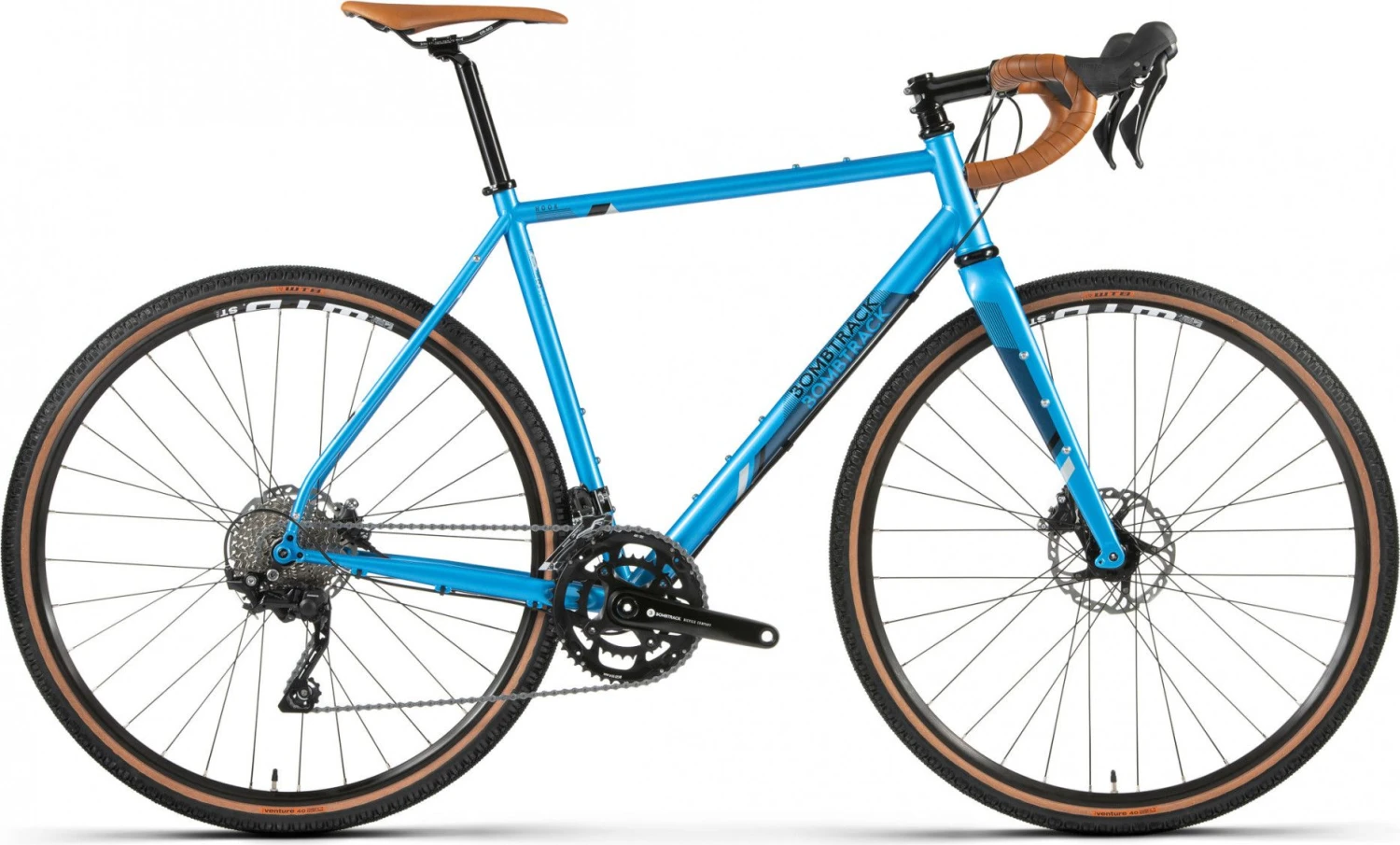

Introducing the Bombtrack Hook. A capable steel frame, light carbon fork, and mid-width 700C tyres render the Hook fast and versatile. Fitted with Shimano’s latest GRX groupset, a double crankset provides close-ratios but a wide range. Letting you keep the tempo high on gravel or unpaved roads, it can be loaded up in an infinite number of ways. Dotted with fixing points, including direct mounts for a top tube bag, triple cage mounts, plus rack and fender mounts, it’s happy to carry whatever you need. Alternatively, leave it stripped-back and free to fly. New for 2021, size-matched 650B or 700C wheels now standardise the bike’s geometry across all sizes.

Main features:

Letting you keep the tempo high on gravel or unpaved roads.
Shimano GRX 2×10-speed drivetrain.
Shimano GRX hydraulic disc brakes, 160/160 mm.
Max tire clearance: frame: 700c x 42c ; fork: 700c x 45c.

Features:

Frame	Crmo: Columbus Cromor double butted, TA dropout,rack / fender mounts, 86.5 mm T47 BB shell, 700c x 42c Frame Max Tire Clearance (w/o fender)
Fork	Carbon: Full carbon, TA, 1.1/2” – 1.1/8”, fender / triple cage mounts
Shifters	Shimano GRX ST-RX400, STI, 2×10-speed
Front Derailleur	Shimano GRX FD-RX400

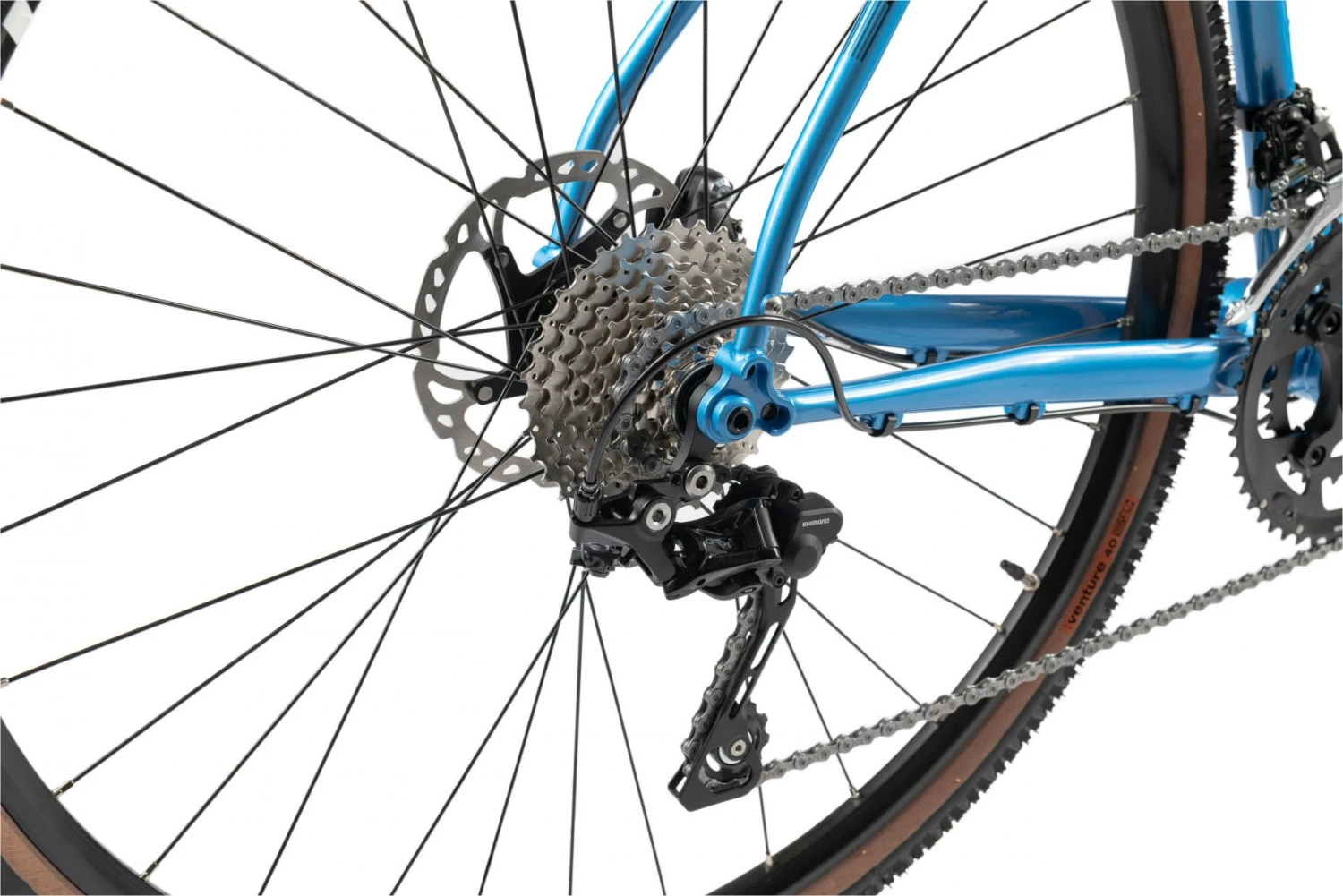

Rear Derailleur	Shimano GRX RD-RX400, clutch, 10-speed
Cassette	Shimano CS-HG50, 11-36T
Chain	KMC X10 EPT Anti Rust chain, 1/2” x 11/128”, 114L

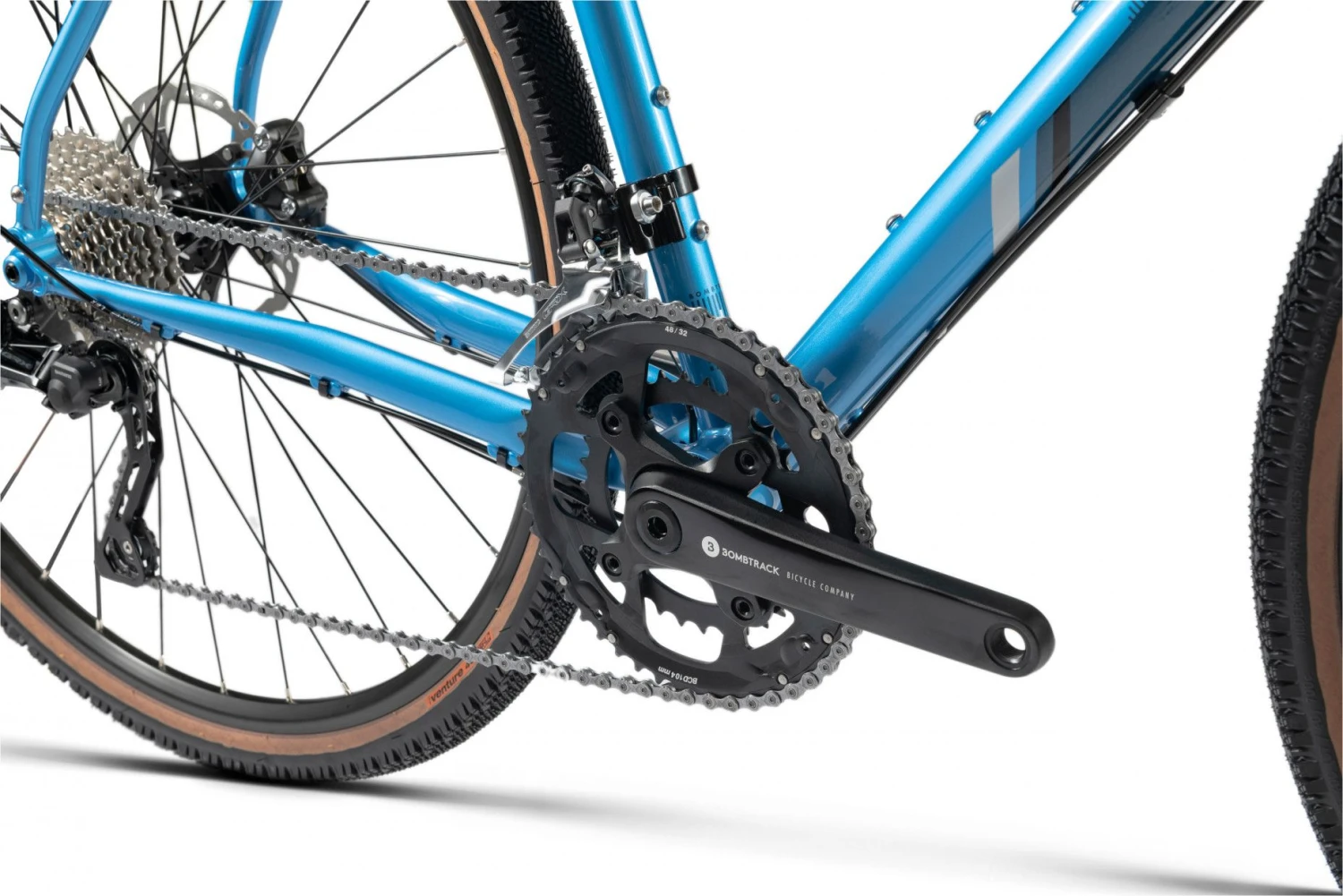

Crankset	Bombtrack Lyer forged aluminium crank, direct mount interface (Sram compatible), 30 mm spindle
Chainring	Aluminium, subcompact, direct mount spider, 48/32T
Bottom Bracket	Bombtrack T47 internal sealed BB for 30 mm spindle

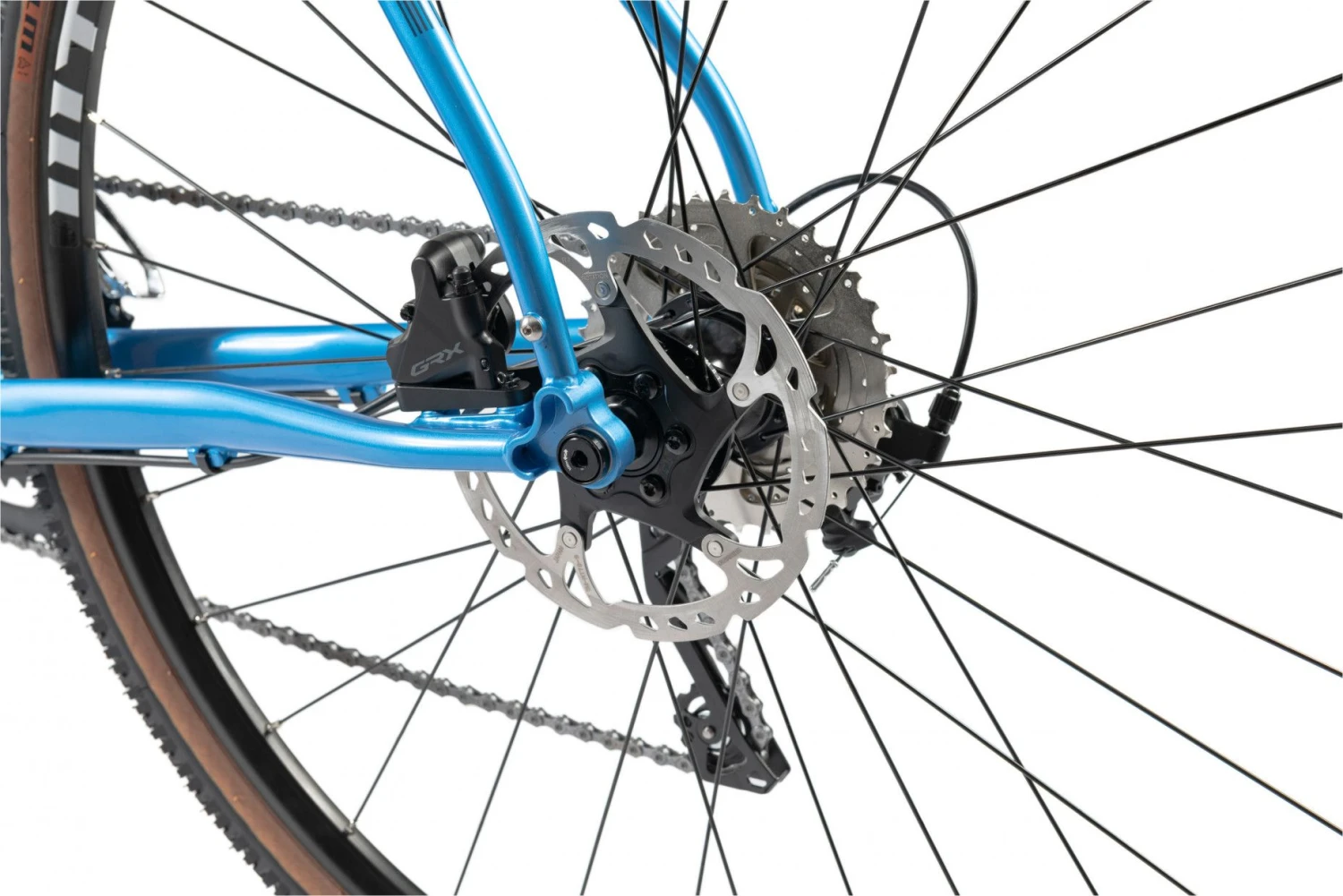

Brakes	Shimano GRX BR-RX400, Hydr. Disc Brake, 160/160 mm
Wheelset	WTB ST i19 double wall, TCS 2.0, 32h

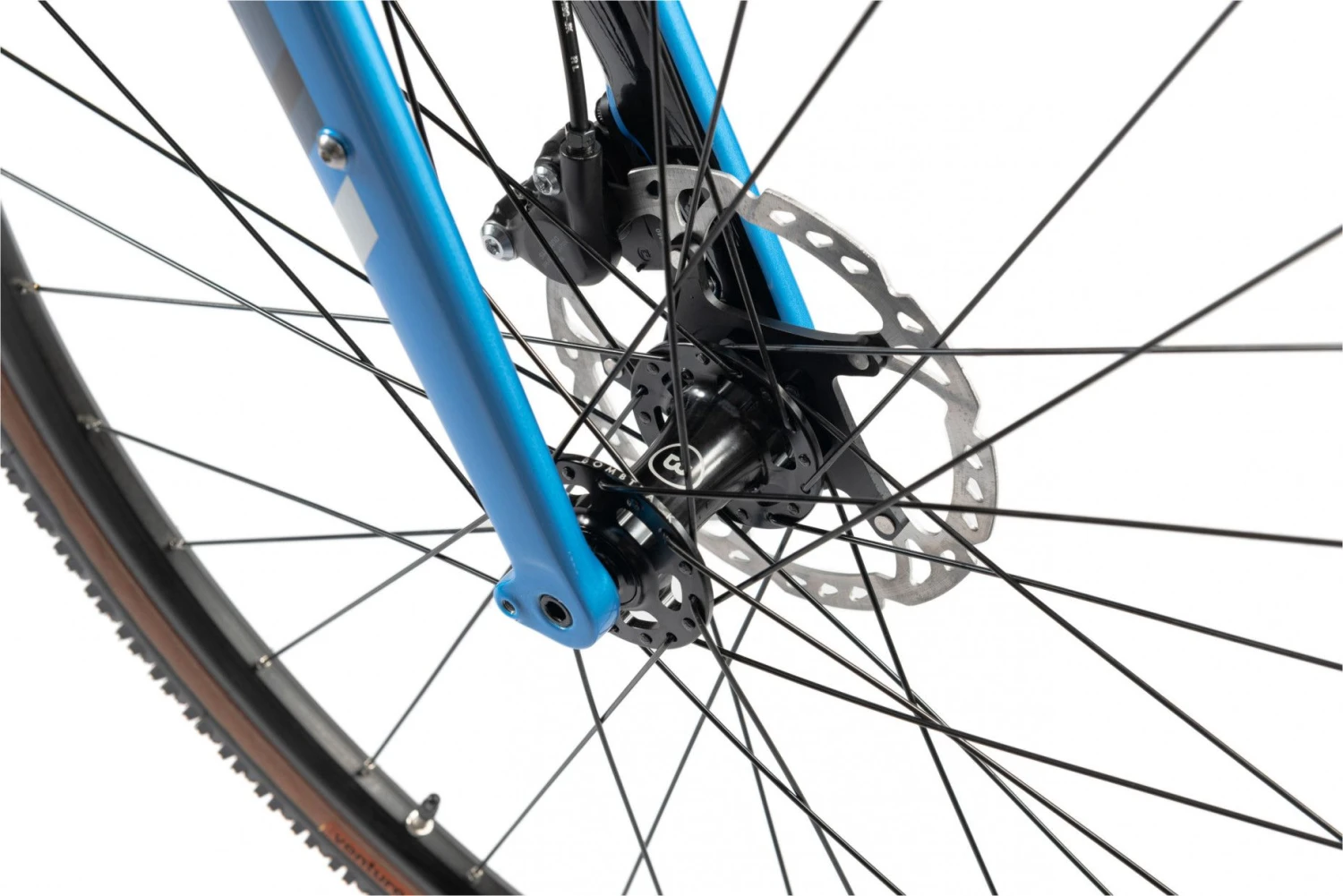

Hubs	Front: Bombtrack Tau sealed disc hub, 12 x 100 mm thru-axle / Rear: Bombtrack Tau sealed disc hub, 12 x 142 mm thru-axle
Tires	WTB Venture, tubeless ready, 40-622

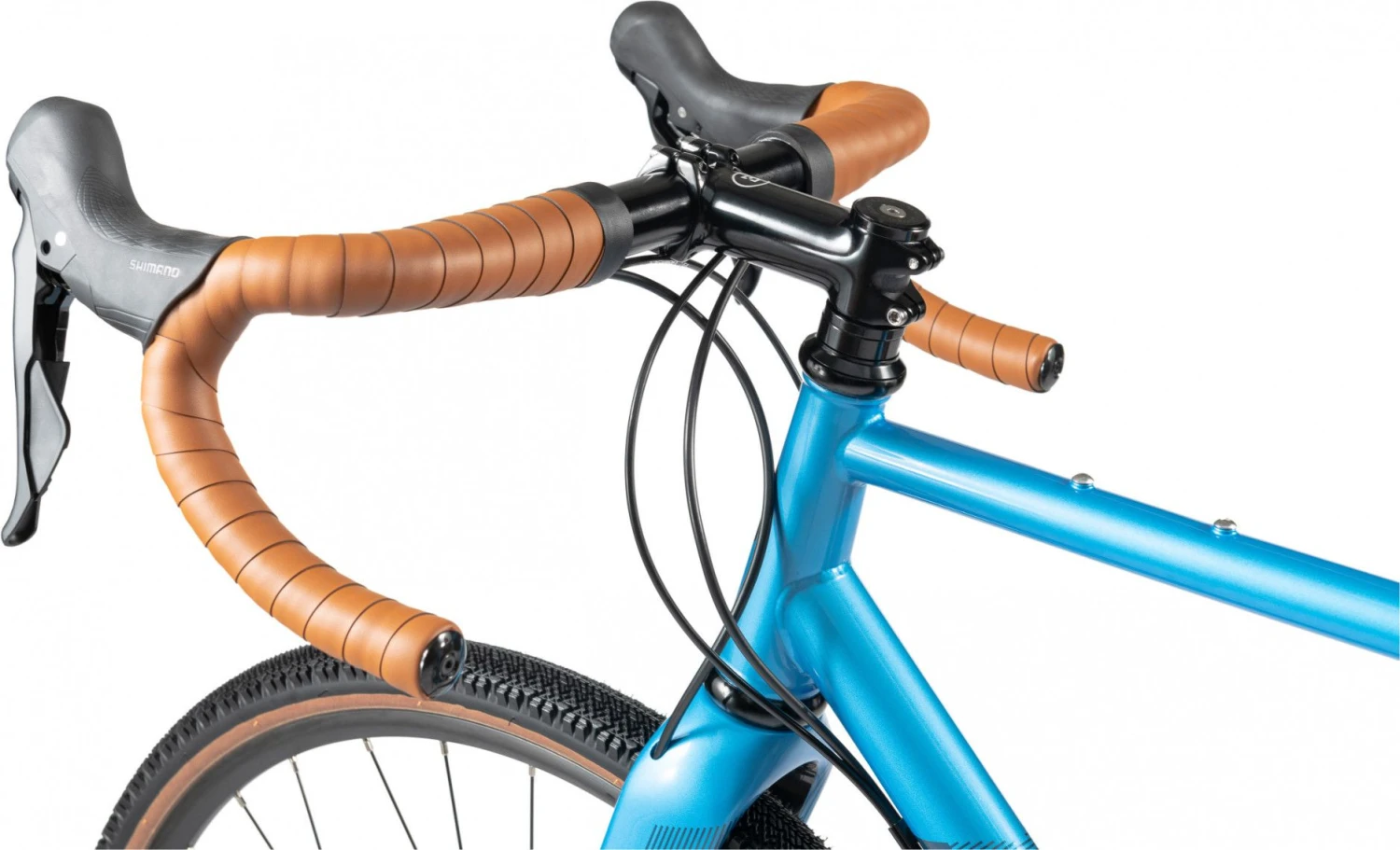

Handlebar	Bombtrack CX-10 drop bar, 31.8 mm, 10° flare, 75 mm reach, 116 mm drop
Bar Tape	Bombtrack Command
Stem	Bombtrack Roam, forged aluminium, -7°
Headset	Sealed external aheadset, 1.1/2” – 1.1/8”, EC34 / 28.6 \| EC44 / 40 (S.H.I.S.)
Saddle	Bombtrack Comp
Seatpost	Bombtrack Beech, 27.2 x 300 mm
Seatclamp	Bombtrack Origin, 29.8 mm
Weight	11.0 kg (size M)
Weight limit	120 kg: the maximum system weight consists of the bike, rider and load (luggage rack or trailer)
Color	Glossy Metallic Blue

Geometries:

Bombtrack Hook Gravel Bike Shimano GRX 10S 700 Mm Metallic Blue -Sram Bike Shop cube route geo en

Frame Size	XS	S	M	L	XL
Wheel Size	650b	650b	700c	700c	700c
Seat Tube (mm)	460	490	525	545	565
Top Tube (mm)	508	522	540	562	579
Chain Stays (mm)	410	410	425	425	425
Head Tube Length (mm)	100	110	130	150	170
Head Tube Angle (°)	71	71.5	72	72	72
Seat Tube Angle (°)	74	74	74	73.5	73.5
Wheelbase (mm)	975	985	1010	1027	1045
Stack (mm)	523	534	565	584	603
Reach (mm)	358	369	378	389	400
Handlebar Width (mm)	400	400	420	440	440
Stem Length (mm)	80	80	90	100	100
Crankarm Length (mm)	165	165	170	175	175
