Bombtrack Hook EXT Gravel Bike Sram Apex 11S 650b Matt Black

Bombtrack Hook EXT Gravel Bike Sram Apex 11S 650b Matt Black - Image 2

Bombtrack Hook EXT Gravel Bike Sram Apex 11S 650b Matt Black - Image 3

Bombtrack Hook EXT Gravel Bike Sram Apex 11S 650b Matt Black - Image 4

Bombtrack Hook EXT Gravel Bike Sram Apex 11S 650b Matt Black - Image 5

Bombtrack Hook EXT Gravel Bike Sram Apex 11S 650b Matt Black - Image 6

Bombtrack Hook EXT Gravel Bike Sram Apex 11S 650b Matt Black - Image 7

Bombtrack Hook EXT Gravel Bike Sram Apex 11S 650b Matt Black

Original price was: $367.00.Current price is: $97.99.

SKU: YWXSD 2197522 Categories: Cyclocross & Gravel, Road Bikes, Road Bikes, Frames & Forks Tag: Bombtrack

Free Shipping, No Compromise on Quality
Shop with Ease
Multiple payment methods, safe and reliable
Guaranteed High Quality

Buying guide

Note : Please note that specifications are subject to change without notice, based on component availability and other factors.

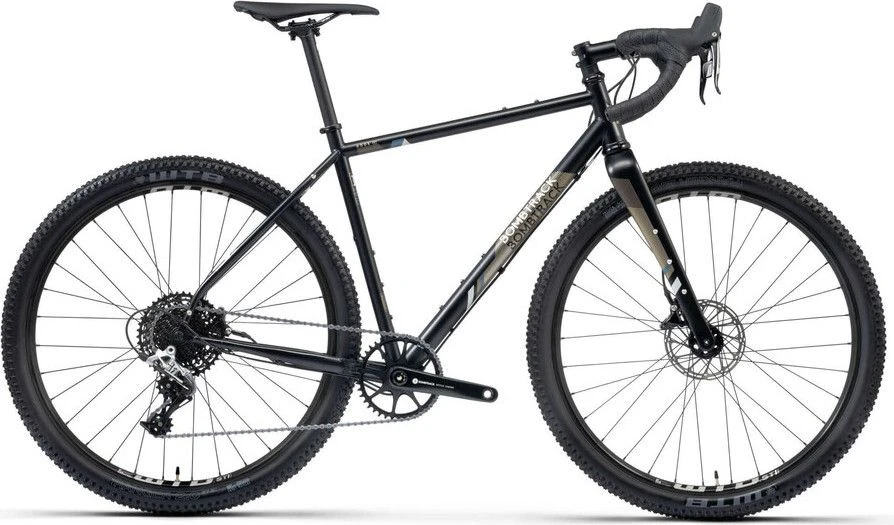

Introducing the Bombtrack Hook EXT. The Hook’s hoodlum tendencies given free rein. Using a Columbus steel frame, dedicated carbon fork, and lively 27.5-inch wheels, the EXT can batter through territory out-of-bounds to other drop handlebar bikes. Backed by Sram’s 1 x 11 Rival groupset, this provides both the gearing range and braking power needed for extreme riding. Adding more build options, this year sees the addition of an integrated rear light mount. As capable on backcountry campouts as it is on post-work blasts, the Hook EXT remains the choice when you’re unsure of the terrain, but know you want to have fun riding it.

Main features:

The radical Hook EXT offers uprated strength and manoeuvrability.
Sram Rival 1 1×11-speed drivetrain.
Sram Rival hydraulic disc brakes, 160/160 mm.
Max tire clearance: frame: 650b x 52c / 700c x 40c ; fork: 650b x 52c / 700c x 45c.

Features:

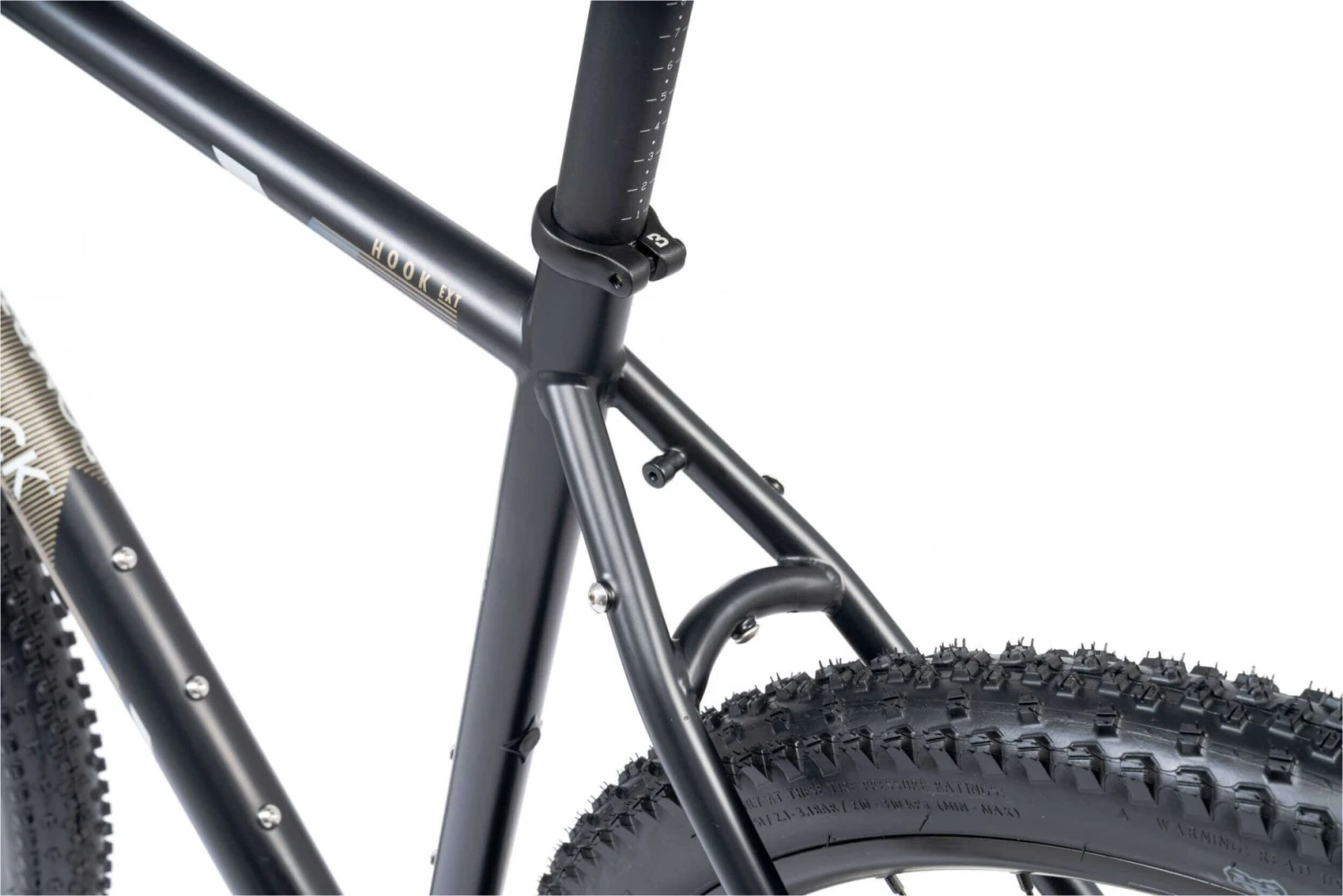

Frame	Crmo: Columbus Cromor double butted tubing, TA, rack / fender mounts, internal light cable routing, rear light mount, 86.5 mm T47 BB shell, 650b x 52c / 700c x 45c Frame Max Tire Clearance (w/o fender)
Fork	Carbon: Full carbon, TA, 1.1/2” – 1.1/8”, fender / triple cage mounts, internal hub dynamo cable routing
Shifters	Sram Rival 1, double tap, 11-speed

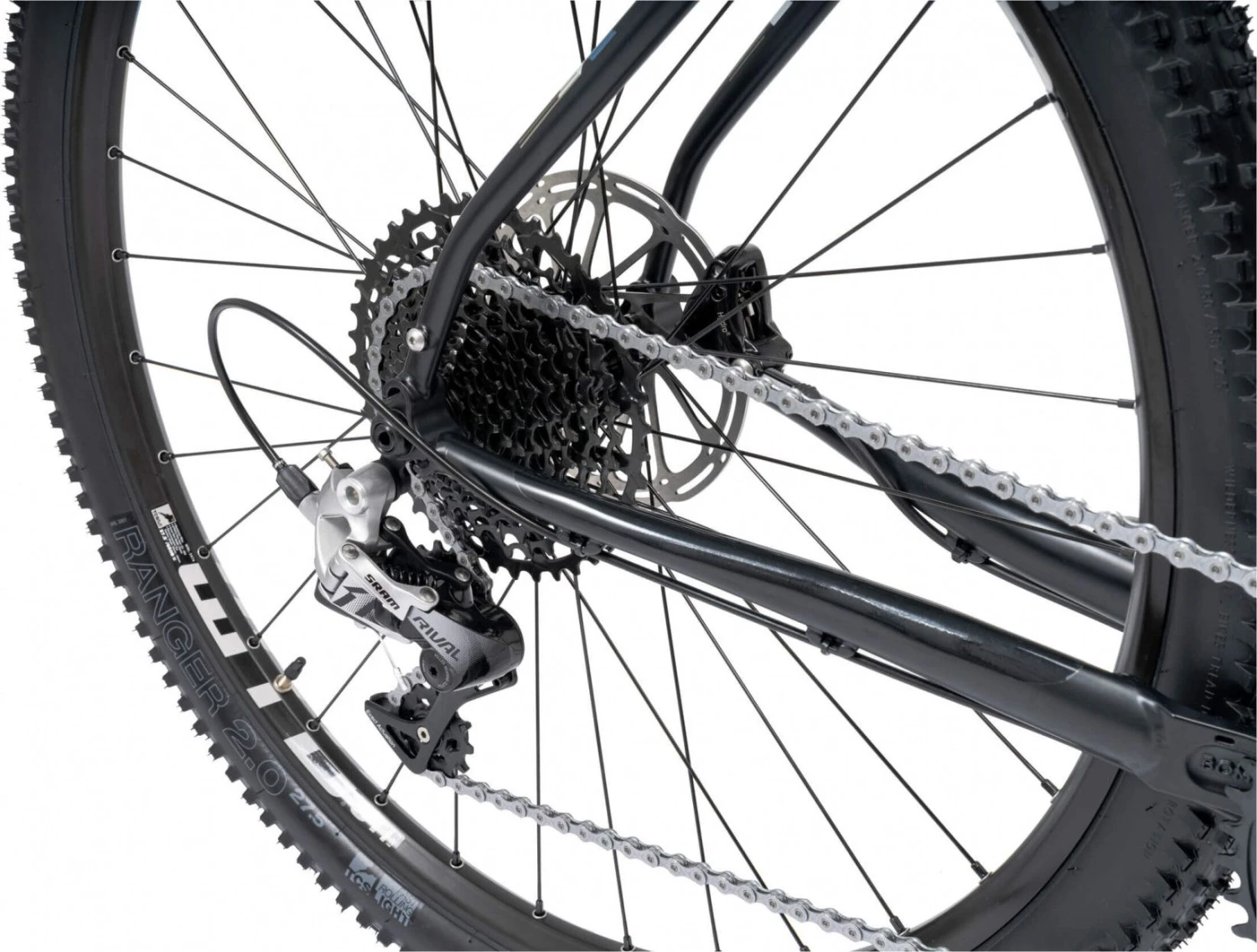

Rear Derailleur	Sram Rival 1, clutch, long cage, 11-speed
Cassette	Sram PG-1130, 11-42T
Chain	KMC X11 EPT Anti Rust chain, 1/2” x 11/128”, 114L

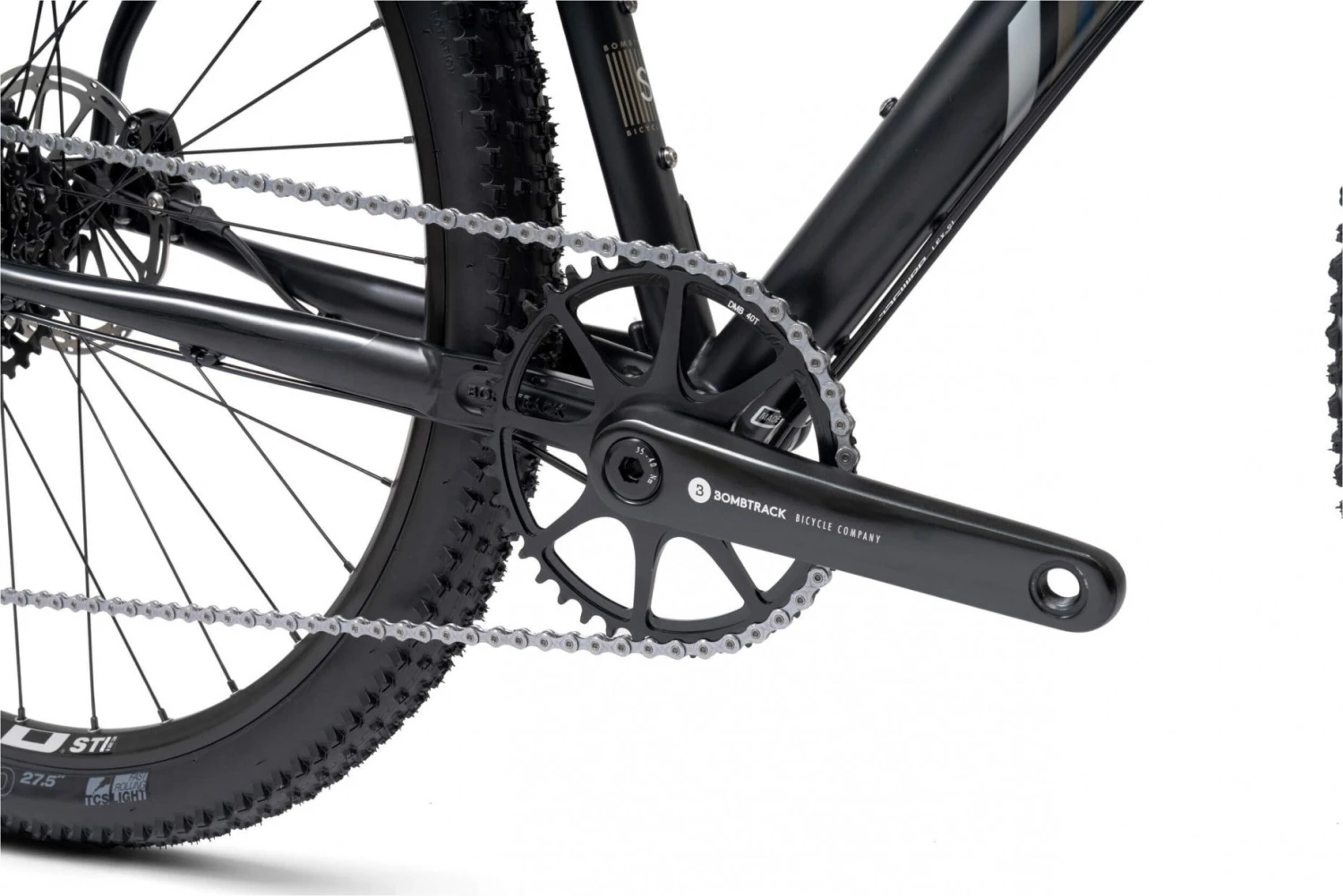

Crankset	Bombtrack Lyer forged aluminium crank, direct mount interface (SRAM compatible), 30 mm spindle
Chainring	CNC machined aluminium, narrow-wide, 40T
Bottom Bracket	Bombtrack T47 internal sealed BB for 30 mm spindle
Brakes	Sram Rival, Hydr. Disc Brake, 160/160 mm, Flat Mount
Wheelset	Front: WTB ST Light i25 double wall, TCS 2.0, 32h / Rear: WTB ST Light i23 double wall, TCS 2.0, 32h
Hubs	Front: Bombtrack Tau sealed disc hub, 12 x 100 mm thru-axle / Rear: Bombtrack Tau sealed disc hub, 11-speed, 12 x 142 mm thru-axle
Tires	WTB Ranger, TCS Light / Fast Rolling, tubeless ready, 27.5 x 2.0”
Handlebar	Bombtrack CX-10 drop bar, 31.8 mm, 10° flare, 75 mm reach, 116 mm drop
Bar Tape	Bombtrack Escape
Stem	Bombtrack Roam, forged aluminum, -7°
Headset	Sealed external aheadset, 1.1/2” – 1.1/8”, EC34 / 28.6 \| EC44 / 40 (S.H.I.S.)
Saddle	Bombtrack Comp
Seatpost	Bombtrack Yew, aluminium, 27.2 x 300 mm
Seatclamp	Bombtrack Origin, aluminium, 29.8 mm
Weight	11.2 kg (size M)
Weight limit	130 kg: the maximum system weight consists of the bike, rider and load (luggage rack or trailer)
Color	Matt Black

Geometries:

Bombtrack Hook EXT Gravel Bike Sram Apex 11S 650b Matt Black -Sram Bike Shop cube route geo en

Frame Size	XS	S	M	L	XL
Seat Tube (mm)	460	500	530	570	600
Top Tube (mm)	519	533	556	570	595
Chain Stays (mm)	425	425	425	425	425
Head Tube Length (mm)	110	130	150	170	190
Head Tube Angle (°)	71.5	71.5	72	72	72
Seat Tube Angle (°)	74.5	74.5	74	74	74
Wheelbase (mm)	995	1010	1025	1040	1060
Stack (mm)	554	573	589	608	627
Reach (mm)	365	374	387	396	409
Handlebar Width (mm)	400	420	420	440	440
Stem Length (mm)	80	80	90	100	100
Crankarm Length (mm)	165	170	170	175	175
