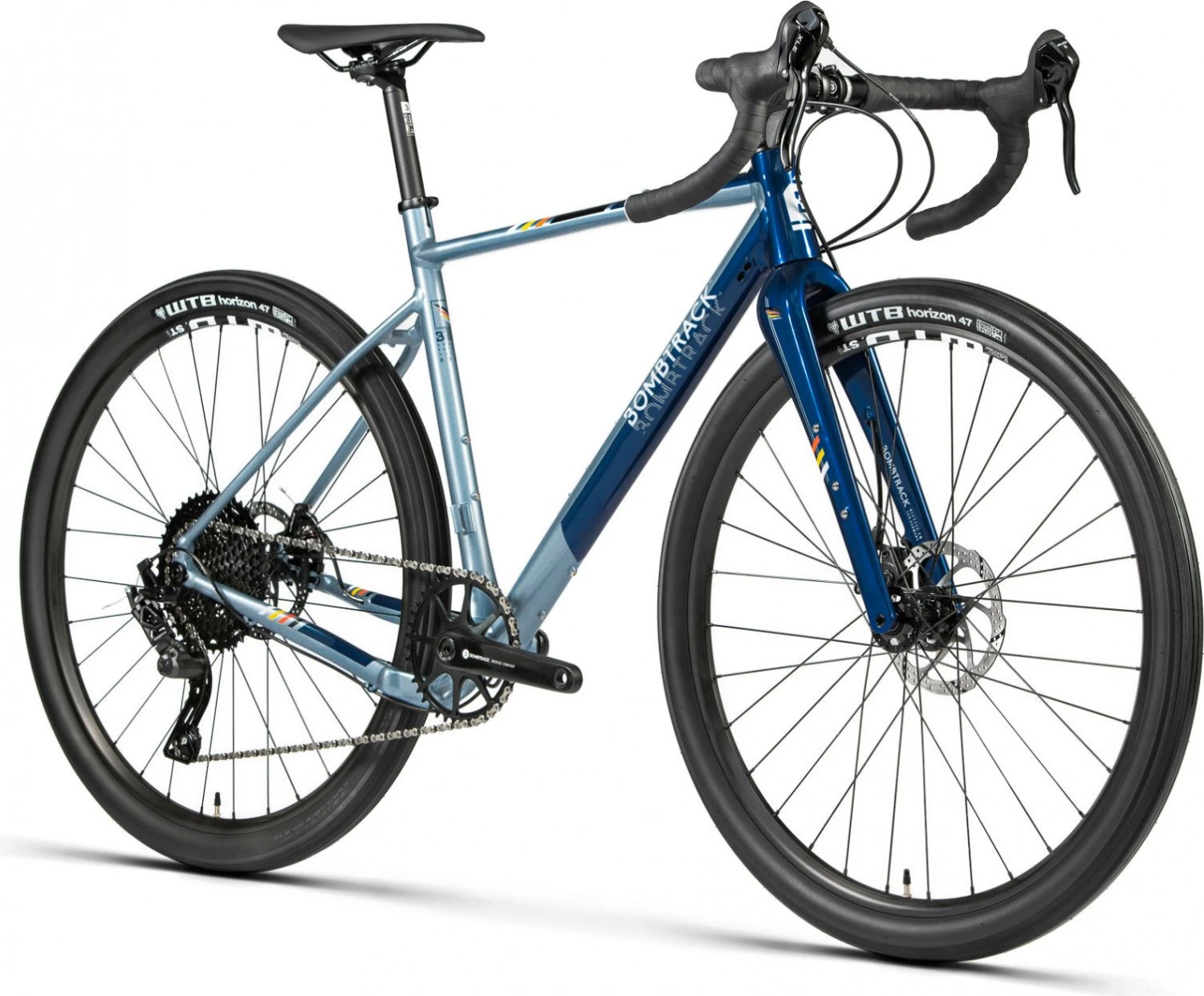

Bombtrack Audax AL Gravel Bike MicroShift XLE 11S 650b Sky Blue
Original price was: $352.00.$95.99Current price is: $95.99.
- Free Shipping, No Compromise on Quality
- Shop with Ease
- Multiple payment methods, safe and reliable
- Guaranteed High Quality
Buying guide
Note : Please note that specifications are subject to change without notice, based on component availability and other factors.
Introducing the Bombtrack Audax AL. A modern audax bike. Our Audax AL uses its voluminous tyres and carbon fork to float over a range of surfaces. Able to accommodate both broad treads and mudguards, a huge range of fixings mean it’s happy carrying standard panniers or bikepacking bags. With a unique rapid geometry featuring short chainstays and an engaged front end, handling is kept lively. Balanced by the enhanced grip and comfort of its 650B tyres, the Audax AL nevertheless remains happy to be ridden day after day. Fitted with Microshift’s wide-ratio XLE 11-speed groupset, a clutch derailleur provides assured operation in rough conditions..
Main features:
- A sporty touring bike or an audacious audax machine.
- microSHIFT XLE 1×11-speed drivetrain.
- TRP Spyre C mechanical disc brakes, 160/160 mm.
- Frame and fork max tire clearance: 650b x 50c / 700c x 35c.
Features:
| Frame | Aluminum: 6061-T6 double butted aluminium, TA, fender mounts, 86.5 mm T47 BB shell, 650b x 50c / 700c x 35c Frame Max Tire Clearance |
| Fork | Carbon: Full carbon, TA, 1.1/2” – 1.1/8”, with fender / cage mounts |
| Shifters | microSHIFT SB-M110, 1×11-speed |
| Rear Derailleur | microSHIFT XLE RD-M665M, clutch, medium cage, 11-speed |
| Cassette | microSHIFT CS-HG113, 11-46T |
| Chain | KMC X11 chain, 1/2” x 11/128”, 114L |

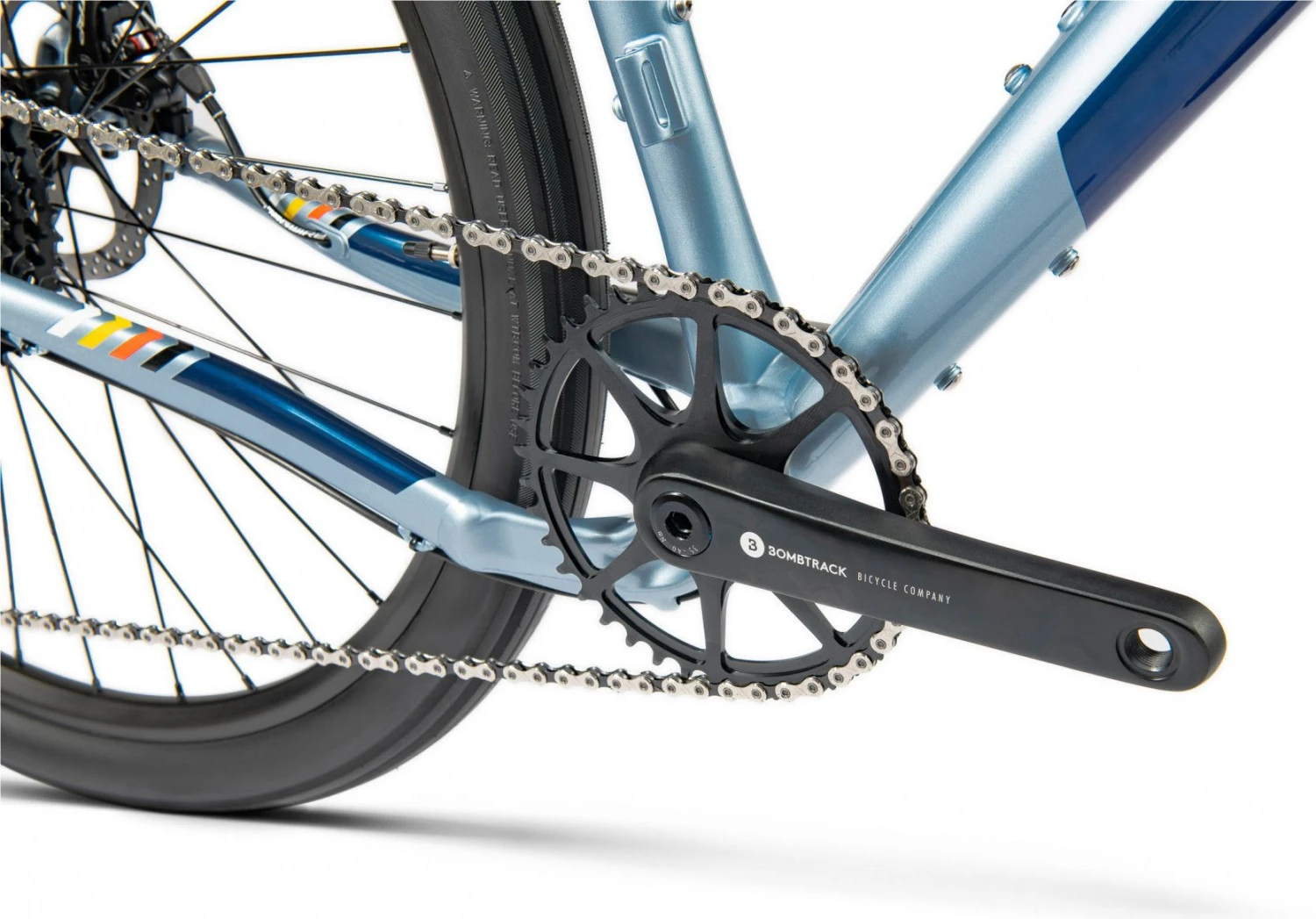

| Crankset | Bombtrack Lyer forged aluminium crank, direct mount interface (Sram compatible), 30 mm spindle |
| Chainring | CNC machined aluminium, narrow-wide, 40T |
| Bottom Bracket | Bombtrack T47 internal sealed BB for 30 mm spindle |
| Brakes | TRP Spyre C, Mech. Disc Brake, 160/160 mm, Flat Mount |
| Wheelset | WTB ST i21 double wall, TCS 2.0, 32h |
| Hubs | Front: Bombtrack Arc sealed disc hub, 6-bolt disc, 12 x 100 mm thru-axle / Rear: Bombtrack Arc sealed disc hub, 11-speed, 6-bolt disc, 12 x 142 mm thru-axle |
| Tires | WTB Horizon, 650b x 47c |

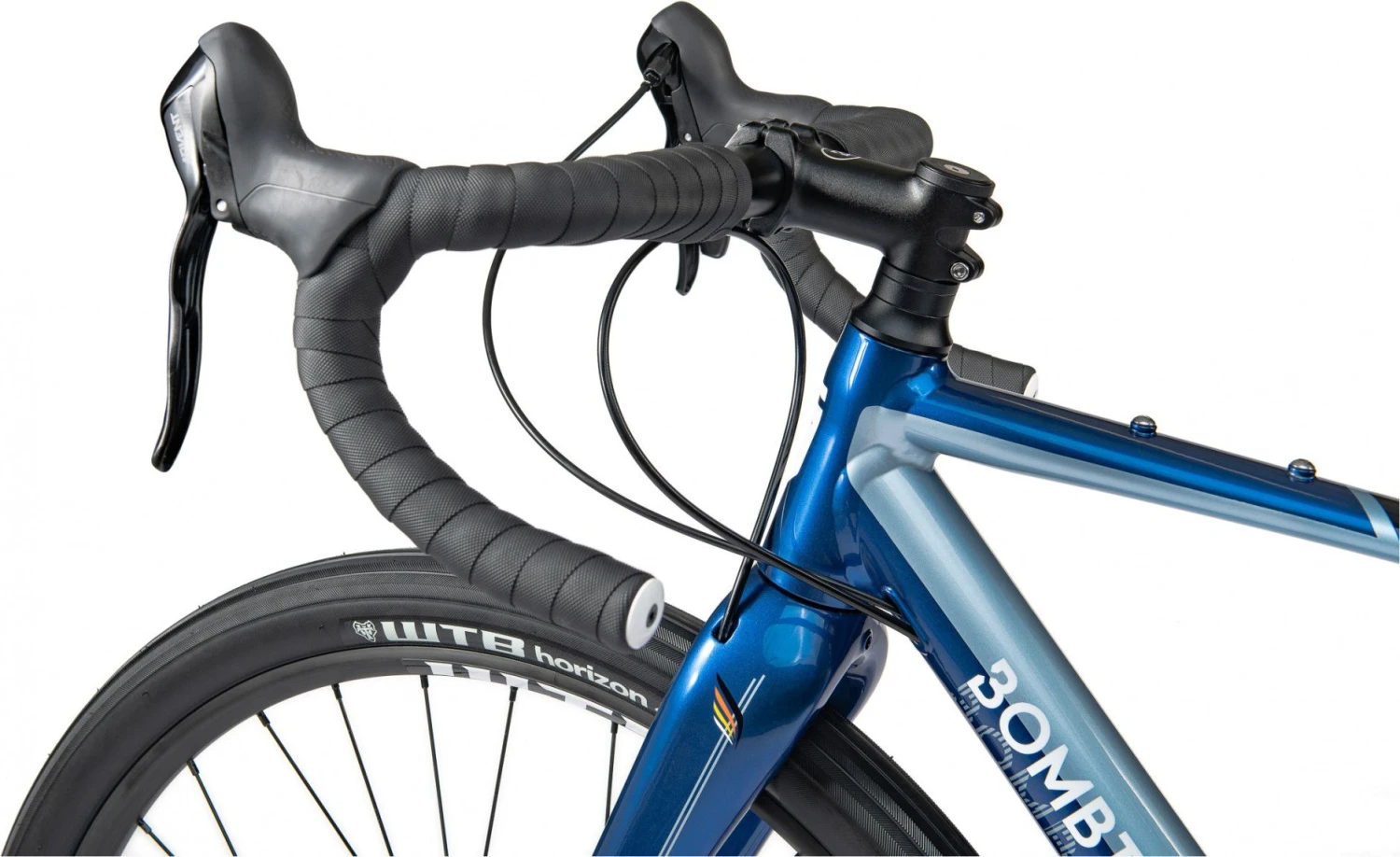

| Handlebar | Bombtrack CX-10 drop bar, 31.8 mm, 10° flare, 75 mm reach, 116 mm drop |
| Bar Tape | Bombtrack Command |
| Stem | Bombtrack Roam forged aluminium stem, -7° |
| Headset | Sealed integrated aheadset, 1.1/2” – 1.1/8”, IS42 / 28.6 | IS52 / 40 (S.H.I.S.) |
| Saddle | Bombtrack Comp |
| Seatpost | Bombtrack Beech, aluminium seatpost, 27.2 x 400 mm |
| Seatclamp | Bombtrack Origin, forged aluminium seat clamp, 31.8 mm |
| Weight | 10.4 kg (size M) |
| Weight limit | 120 kg: the maximum system weight consists of the bike, rider and load (luggage rack or trailer) |
| Color | Glossy Sky Blue |
Geometries:
| Frame Size | XS | S | M | L | XL |
| Seat Tube (mm) | 470 | 500 | 530 | 560 | 590 |
| Top Tube (mm) | 505 | 527 | 551 | 569 | 592 |
| Chain Stays (mm) | 420 | 420 | 420 | 420 | 420 |
| Head Tube Length (mm) | 100 | 120 | 150 | 180 | 205 |
| Head Tube Angle (°) | 71 | 72 | 72 | 72 | 72 |
| Seat Tube Angle (°) | 75 | 74.5 | 74 | 74 | 73.5 |
| Wheelbase (mm) | 991 | 1000 | 1021 | 1041 | 1059 |
| Stack (mm) | 512 | 533 | 561 | 587 | 611 |
| Reach (mm) | 368 | 379 | 390 | 401 | 411 |
| Handlebar Width (mm) | 400 | 420 | 420 | 440 | 440 |
| Stem Length (mm) | 80 | 80 | 90 | 100 | 100 |
| Crankarm Length (mm) | 165 | 170 | 170 | 175 | 175 |
MORE INFORMATION
| Frame | Aluminum: 6061-T6 double butted aluminium, TA, fender mounts, 86.5 mm T47 BB shell, 650b x 50c / 700c x 35c Frame Max Tire Clearance |
| Fork | Carbon: Full carbon, TA, 1.1/2” – 1.1/8”, with fender / cage mounts |
| Shifters | microSHIFT SB-M110, 1×11-speed |
| Rear Derailleur | microSHIFT XLE RD-M665M, clutch, medium cage, 11-speed |
| Cassette | microSHIFT CS-HG113, 11-46T |
| Chain | KMC X11 chain, 1/2” x 11/128”, 114L |
| Crankset | Bombtrack Lyer forged aluminium crank, direct mount interface (Sram compatible), 30 mm spindle |
| Chainring | CNC machined aluminium, narrow-wide, 40T |
| Bottom Bracket | Bombtrack T47 internal sealed BB for 30 mm spindle |
| Brakes | TRP Spyre C, Mech. Disc Brake, 160/160 mm, Flat Mount |
| Wheelset | WTB ST i21 double wall, TCS 2.0, 32h |
| Hubs | Front: Bombtrack Arc sealed disc hub, 6-bolt disc, 12 x 100 mm thru-axle / Rear: Bombtrack Arc sealed disc hub, 11-speed, 6-bolt disc, 12 x 142 mm thru-axle |
| Tires | WTB Horizon, 650b x 47c |
| Handlebar | Bombtrack CX-10 drop bar, 31.8 mm, 10° flare, 75 mm reach, 116 mm drop |
| Bar Tape | Bombtrack Command |
| Stem | Bombtrack Roam forged aluminium stem, -7° |
| Headset | Sealed integrated aheadset, 1.1/2” – 1.1/8”, IS42 / 28.6 | IS52 / 40 (S.H.I.S.) |
| Saddle | Bombtrack Comp |
| Seatpost | Bombtrack Beech, aluminium seatpost, 27.2 x 400 mm |
| Seatclamp | Bombtrack Origin, forged aluminium seat clamp, 31.8 mm |
| Weight | 10.4 kg (size M) |
| Weight limit | 120 kg: the maximum system weight consists of the bike, rider and load (luggage rack or trailer) |
| Color | Glossy Sky Blue |
| Frame Size | XS | S | M | L | XL |
| Seat Tube (mm) | 470 | 500 | 530 | 560 | 590 |
| Top Tube (mm) | 505 | 527 | 551 | 569 | 592 |
| Chain Stays (mm) | 420 | 420 | 420 | 420 | 420 |
| Head Tube Length (mm) | 100 | 120 | 150 | 180 | 205 |
| Head Tube Angle (°) | 71 | 72 | 72 | 72 | 72 |
| Seat Tube Angle (°) | 75 | 74.5 | 74 | 74 | 73.5 |
| Wheelbase (mm) | 991 | 1000 | 1021 | 1041 | 1059 |
| Stack (mm) | 512 | 533 | 561 | 587 | 611 |
| Reach (mm) | 368 | 379 | 390 | 401 | 411 |
| Handlebar Width (mm) | 400 | 420 | 420 | 440 | 440 |
| Stem Length (mm) | 80 | 80 | 90 | 100 | 100 |
| Crankarm Length (mm) | 165 | 170 | 170 | 175 | 175 |
| Gender | Men |
| Groupset | microSHIFT XLE 11S |
| collection | 2021 |
| Size | S / 160-171 cm, M / 170-181 cm, L / 179-190 cm, XL / 188-199 cm |
|---|
